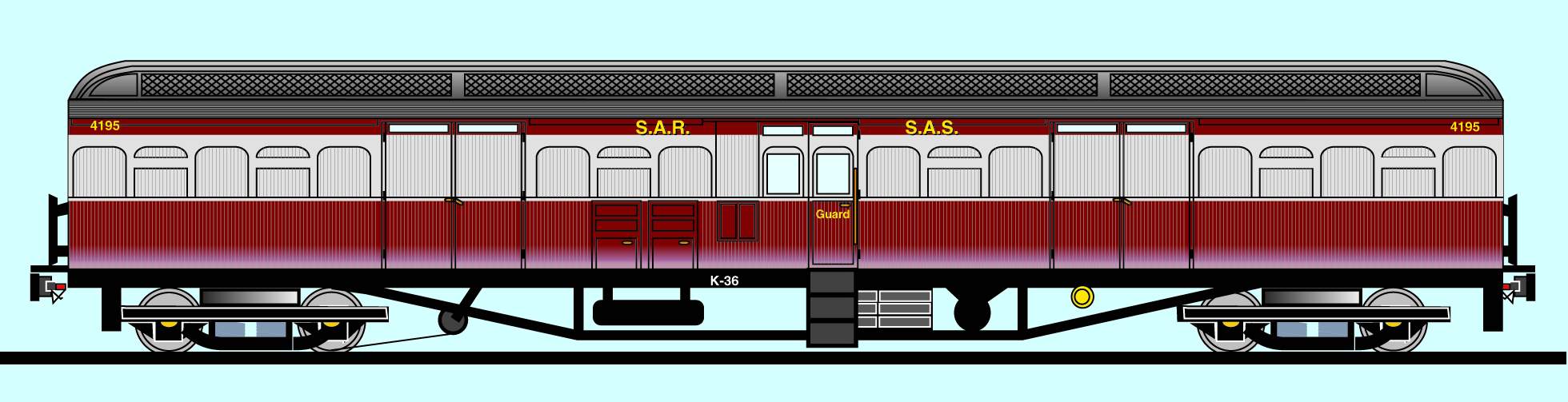

SAR Type K-36 Passenger Baggage and Guard's Van Drawing

SAR Type K-36 Passenger baggage and guard's van

Click on picture for larger image

Numbers: 4195, 4197-4217, 4219-4222, 4224, 4226-4238, 4240-4244

Built SAR Workshops Uitenhage
Introduced 1923
Building continued until 1930

Guard's compartment, no toilet.
10 ton baggage load.
*No end doors.

10 x 4.5 inch journals

Tare varies between 28 tons 3 cwt and 28 tons 14.5 cwt

Note:
All information and data is based on the type as it was in 1966.

*Coaches 4201 and 4222 have end doors. Coach 4212 body rebuilt similar to K-42.

Note also that apartheid was being enforced at that time and coaches designated
with a -C suffix had the relevant markings as shown in these drawings.
