SAR Type A-37 Air-conditioned Dining Car Drawing

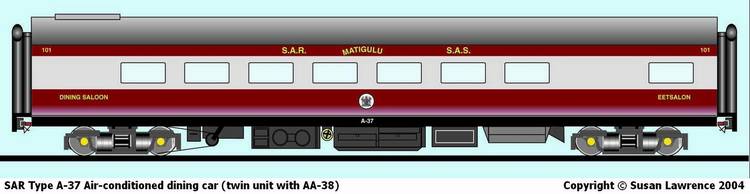

SAR Type A-37 Air-conditioned dining car

Click on picture for larger image

Numbers:

101 - Matigul	102 - Matlabas
103 - Ifafa	104 - Ngulana
105 - Sezela	106 - Marikana
107 - Usutu	108 - Mdloti
109 - Umhlanga

Built by Wegmann Company, Germany
Introduced 1958
Building continued until 1959

Seat 38 diners

Roller bearings

Tare 51 tons 0 cwt

Note:
All information and data is based on the type as it was in 1966.

Coaches 101 and 102 were originally painted for use on the Blue Train, 103 - 105 for use on the Orange Express.
However, 102 was repainted red and grey in March 1965.
103 was repainted red and grey by 1966.
Matched with cars 331-339 in numerical sequence (e.g. 101 matched with 331, 102 with 332 etc).

Note also that apartheid was being enforced at that time and coaches designated with a -C suffix had the relevant markings as shown in these drawings.
