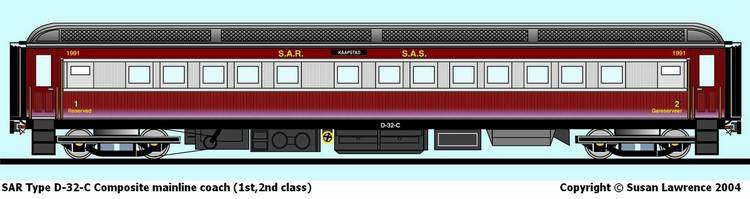

SAR Type D-32-C Composite Mainline Coach Drawing

SAR Type D-32-C Composite mainline coach
(1st, 2nd class)

Click on picture for larger image

Numbers: 1982-1985, 1987-1990

Built SAR Workshops, Durban

Seat 18 x 1st class passengers and 21 x 2nd class passengers or sleep 12 x 1st class passengers and 21 2nd class passengers

11 x 5.5 inch journals

Tare 42 tons 6.4 cwt

Note:
All information and data is based on the type as it was in 1966.

Note also that apartheid was being enforced at that time and coaches designated
with a -C suffix had the relevant markings as shown in these drawings.
